Fuses general - These pages apply only to pre-2001 Bongo vehicles

The Bongo only uses 9 types of fuse, across 3 fuse boxes and one fusible link for diesel engine types.

Select a Tab along the top of this section to:
Identify the fuses used,
Which circuits are affected by a given fuse,
Which fuse controls a circuit,
Light bulb types.

Common electrical problems

  • Passenger window won't work - Drivers door window lock switch has been pressed ?
  • Passenger / Drivers window or Mirrors won't work correctly - Drivers door loom break in wire between chassis and door ?
  • Rear window Wash/wipe - corrosion of motor contacts or break in wires between chassis and rear door ?
  • Front window wash/wipe - corrosion of motor contacts.
  • AFT won't go up/down - check handbrake is on / check handbrake switch works (brake light on dashboard should come on) ?
  • AFT won't come down - Has the Lock Cancel switch inside the AFT been operated ?
  • Air. Con. fan won't work on all / some speeds - Thermal fuses popped in resistor module / control transistor blown in digital versions ?

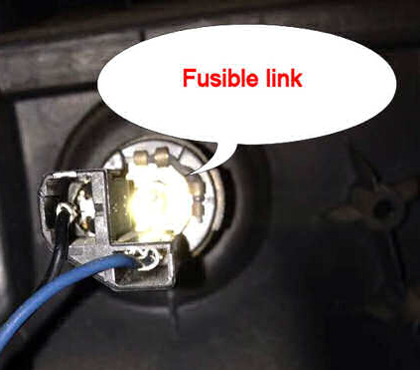

  • Cigar sockets don't work - they are often fitted with there own fused link mounted on the back of the socket itself.
  • For more details and cures for the above problems and many others read or join the Bongo Fury forum - its free to read and comment
Bongo Fuses used

Fuse Types

Click the fuse image for an Ebay search


100 Amp PAL MALE BOLTED open ended
Do not try to remove without undoing bolts!
60 Amp PAL
Slow Blow 293 series FEMALE
40 Amp PAL
Slow Blow 293 series FEMALE
30 Amp PAL
Slow Blow 293 series FEMALE
30 Amp PAL
J series FEMALE
30 Amp MINI
20 Amp MINI
15 Amp MINI
10 Amp MINI
Find a circuit protected by a given fuse - These pages apply only to pre-2001 Bongo vehicles

Fuse Blocks

Please note: Placement of fuses and values vary between models, variations are noted below by engine type WL-T Diesel, FE-E 2l Petrol & J5-DE V6.
Select a fuse by running the Mouse over and clicking or tapping the individual fuses below.
To return to the top click / tap any individual fuse image.

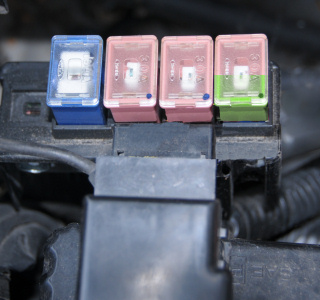

X01 Mounted on battery
Main fuse Head Light fuse Fan fuse Injection fuse Fan 2 fuse
Diesel Fusible Link

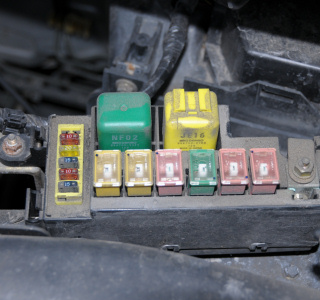

X02 Mounted mid-bonnet

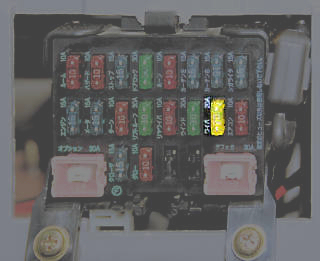

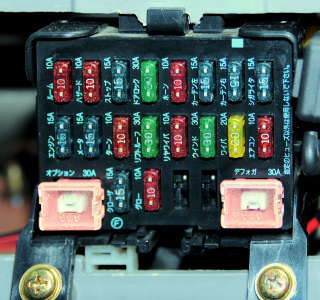

X03 Drivers side dashboard

Individual Fuses

Each fuse position, with variations are listed below;

X01 Fuse box

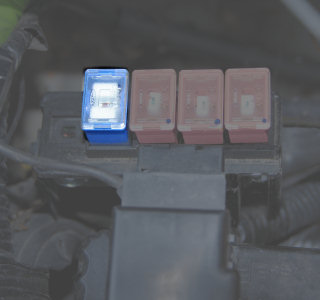

MAIN 100 Amp PAL Male Bolted open ended fuse - This feeds all the lower current circuits individually fused via X02 or X03 fuse blocks.

DO NOT ATTEMPT TO REMOVE BY PRISING IT OUT - IT IS BOLTED IN !!

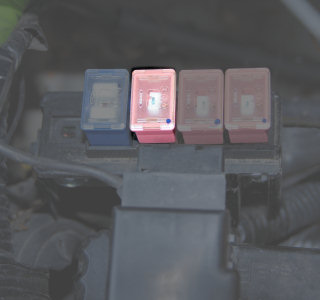

HEAD 30 Amp PAL Female 293 series fuse - This feeds the head lights on all versions.
On the Diesel (WL-T) version it feeds the alternator field coils as well.

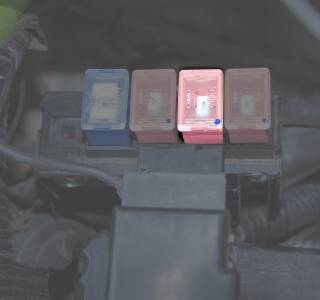

FAN 30 Amp PAL Female 293 series fuse - This feeds the two radiator fans.

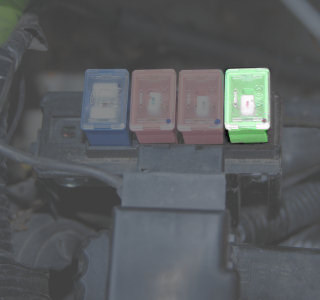

FAN2 40 Amp PAL Female 293 series fuse - Diesel (WL-T) only. This feeds the two radiator fans for the faster speed.

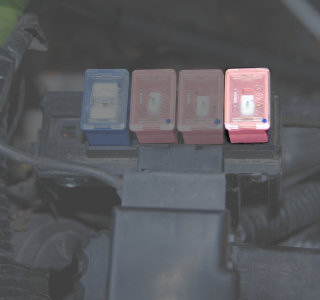

INJ 30 Amp PAL Female 293 series fuse - Petrol (FE-E or J5-DE) The alternator field coils and the MAIN relay in X02, which in turn feeds the injection loom (J5-DE), petrol pump, ignition coil and air flow sensor.

Fusible Link

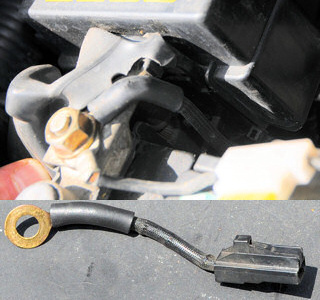

Fusible Link - Diesel (WL-T) only, supplies glowplugs via relay.

X02 Fuse Box

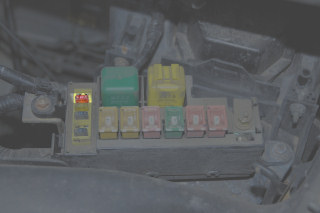

ST SIG 10 Amp Mini fuse - This is a starter motor signal to the ECU.

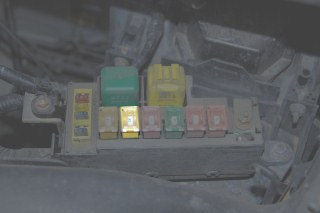

ABS 20 Amp Mini fuse - This feeds the individual solenoids in the ABS unit.
Tail, Number plate & Side lights 15 Amp Mini fuse - This feeds the external lamps as well as all the internal indicator, display & illumination lamps.

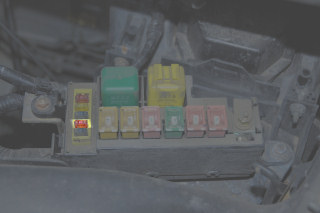

ENGINE 10 Amp Mini fuse - This appears only on the Manual Gearbox Diesel version.
FOG front 15 Amp Mini fuse - This feeds the front fog lights.

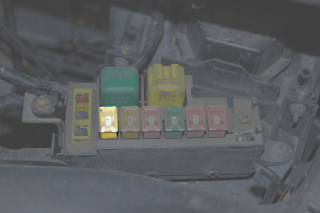

IG KEY 60 Amp PAL Female 293 series fuse - This feeds the ignition switch circuits.
ABS 60 Amp PAL Female 293 series fuse - This feeds the ABS pump motor.

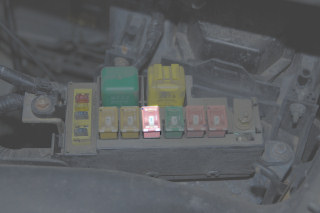

Rear HEATER 30 Amp PAL Female 293 series fuse - This feeds the rear heater fan motor.

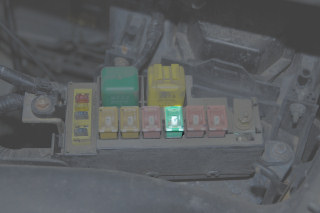

BTN 40 Amp PAL Female 293 series fuse - This feeds all the unswitched circuits for backup and permenantly powered circuits via the X03 fuse box.

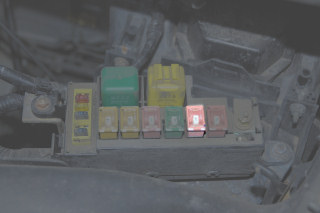

HEATER 30 Amp PAL Female 293 series fuse - This feeds the front heater fan.

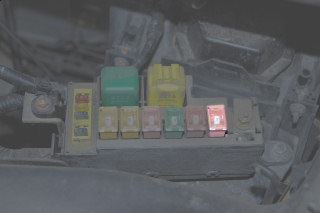

ADD FAN 30 Amp PAL Female 293 series fuse - This feeds the scavenger fan directly infront of the engine and the Air Con. compressor clutch.
THIS NOT A FUSE

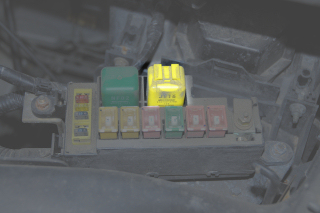

This is the MAIN relay used on the Manual Diesel (WL-T) and Petrol (FE-E, J5-DE) versions to control power to a variety of circuits.
THIS NOT A FUSE

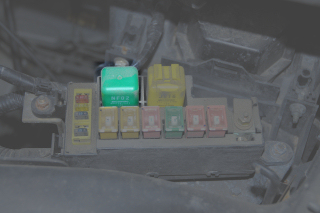

This is the FUEL relay used on the Petrol (FE-E, J5-DE) versions to provide power to the fuel pump.

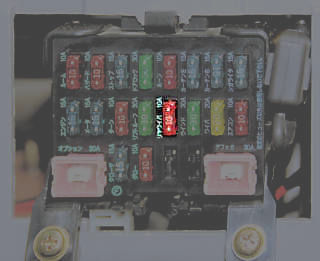

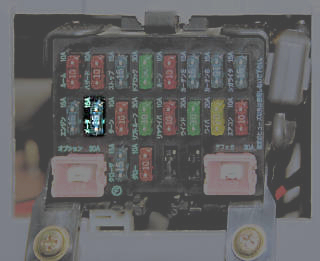

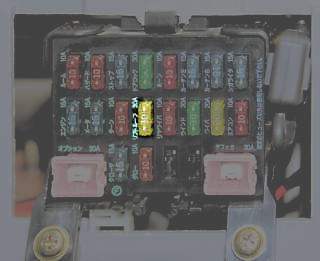

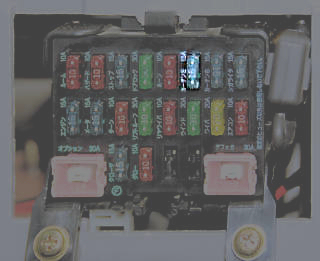

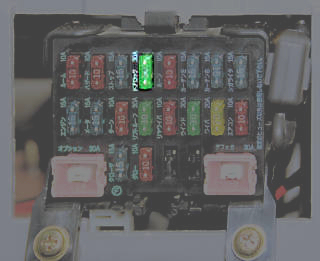

X03 Fuse Box

15 Amp Mini fuse
Body - Cigar Lighter - WL-T, FE-E, J5-DE
Accessories - Audio System - WL-T, FE-E, J5-DE
Accessories - Car Navigation System - WL-T, FE-E, J5-DE
Body - Remote Control Door Mirror - WL-T, FE-E, J5-DE
Body - Galley-rear kitchen System - WL-T, FE-E, J5-DE
15 Amp Mini fuse
Body - Roll Curtains Offside - WL-T, FE-E, J5-DE
15 Amp Mini fuse
Body - Roll Curtains Nearside - WL-T, FE-E, J5-DE
10 Amp Mini fuse
Body - Horn - WL-T, FE-E, J5-DE
30 Amp Mini fuse
Body - Power Door Lock System - WL-T, FE-E, J5-DE
15 Amp Mini fuse
Body - Brake lights - WL-T, FE-E, J5-DE
10 Amp Mini fuse
Exterior lighting - Turn & Hazard Light Power - WL-T, FE-E, J5-DE
10 Amp Mini fuse
Engine - Control System - WL-TAT
Engine - Control System Ignition - FE-E,J5-DE
Air conditioning - Auto A/C Control System & Heater - WL-T, FE-E, J5-DE
Chassis related - EC-AT Control System - FE-E, J5-DE
Interior lighting - Cargo Room & Spot Lights - WL-T, FE-E, J5-DE
Accessories - Audio System - WL-T, FE-E, J5-DE
Accessories - Car Navigation System - WL-T, FE-E, J5-DE
Body - Power Door Lock System - WL-T, FE-E, J5-DE
Body - Auto Free Top - WL-T, FE-E, J5-DE
Body - Sound Warning System - WL-T, FE-E, J5-DE
10 Amp Mini fuse
Air conditioning - Front Heater & Manual A/C Control System - WL-T, FE-E, J5-DE
Air conditioning - Rear Heater & Manual A/C Control System - WL-T, FE-E, J5-DE
Air conditioning - Auto A/C Control System & Heater - WL-T, FE-E, J5-DE
Body - Rear Defroster & Cigar Lighter - WL-T, FE-E, J5-DE
Body - Corner Sensor System - WL-T, FE-E, J5-DE
20 Amp Mini fuse
Body - Front Wiper & Washer - WL-T, FE-E, J5-DE
30 Amp Mini fuse
Body - Power Window - WL-T, FE-E, J5-DE
10 Amp Mini fuse
Body - Rear Wiper & Washer - WL-T, FE-E, J5-DE
30 Amp Mini fuse
Body - Sun Roof - WL-T, FE-E, J5-DE
20 Amp Mini fuse
Body - Auto Free Top - WL-T, FE-E, J5-DE
10 Amp Mini fuse
Exterior lighting - Turn & Hazard Light control - WL-T, FE-E, J5-DE
15 Amp Mini fuse
Engine - Starter And Alternator - WL-T,FE-E,J5-DE
Engine - Control System - WL-TMT,WL-TAT
Instrument panel - Combination Meter - WL-T,FE-E,J5-DE
Chassis related - EC-AT Control System - FE-E, J5-DE
Body - Auto Free Top - WL-T, FE-E, J5-DE
Body - Srs Air Bag System - WL-T, FE-E, J5-DE
Body - Sound Warning System - WL-T, FE-E, J5-DE
15 Amp Mini fuse
Engine - Control System - WL-T
Engine - Control System Ignition - FE-E,J5-DE
Engine - Fuel Control System - FE-E, J5-DE
Engine - Cooling System - WL-T,FE-E, J5-DE
Exterior lighting - Reversing Light - WL-T, FE-E, J5-DE
Chassis related - EC-AT Control System - FE-E, J5-DE
Chassis related - 4 Wheel Anti Lock Brake System (4Wabs) - WL-T, FE-E, J5-DE
Body - SRS Air Bag System - WL-T, FE-E, J5-DE
Others - Diagnosis Connector - WL-T,FE-E,J5-DE
30 Amp J series
Body - Rear Defroster - WL-T, FE-E, J5-DE
10Amp Mini fuse
Engine - Control System - WL-TMT,WL-TAT
15 Amp Mini fuse
Body - Auto Closure System - WL-T, FE-E, J5-DE

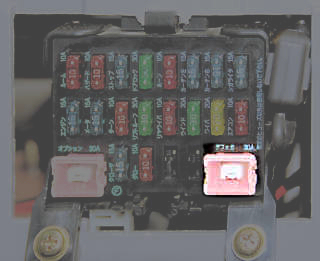

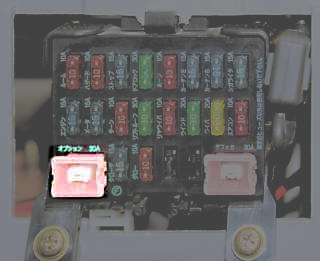

30 Amp J Series
Body - Galley-rear kitchen System - WL-T, FE-E, J5-DE
Find a fuse given the problem area - These pages apply only to pre-2001 Bongo vehicles

Select your problem area from the drop-down list:

When you select a circuit above then the relevant fuses will be shown below, there may be up to three seperate fuses in some circuits (Power, Control etc.).

Bongo Lights used

Light/Bulb Types


Original style incandescent bulbs shown, these may often be replaced by LED's.

H4 or 472 - 55 Watt Headlight bulb

H3-453 - 55 Watt Front Fog lights

Pre 2000-2001 380 - 21/5 Watt Brake light
2000-2001 Onwards 580

581 - 21 Watt Front Indicator light

Pre 2000-2001 382 - 21 Watt Reversing, Rear Indicator & Rear Fog lights
2000-2001 Onwards 921

Festoon 269 SV8.5 Cap 30mm length - 10 Watt - AFT & Rear door pillar interior lights

501 - 5 Watt Sidelights, Number plate & interior front cabin, also 3 Watt version for dashboard signal lights.

158 - T10 - 3.36 Watt Dash illumination lights
Note: Some models vary in wattage

286 - T5 - 1.2 Watt Dash indicator lights
Air Con. panel back lights
Note: Some models vary in wattage

FUL8T6 - Fluorescent "U" tube
